SEM110

High Accuracy 4-20mA Transmitter

Delivery
Order Online
from £134.20
approx €159.28
Cancel
SEM110 Select Options
£134.20
approx €159.28
You need to select 3 option(s) for this product before ordering. You can select from the options below, or enter the part number (show tutorial)
Part #
SEM110
- - -
Sensor
P
Platinum Resistor
Change
K
Thermocouple Type K
Change
T
Thermocouple Type T
Change
J
Thermocouple Type J
Change
R
Thermocouple Type R
Change
S
Thermocouple Type S
Change
D
Difference Temperature
Change
W
Slide Wire
Change
Z
Variable Resistor
Change
Low
4mA
4mA
Change
High
20mA
20mA
Change
You need to select 3 option(s)
You need to select 3 option(s) for this product before ordering
All required options have been selected. You're almost there!
Save & Select Quantity
  • Copy to clipboard
  • Save as preset (Coming soon)
  • The option combination you selected is not available.
    Check Available Models

    Overview

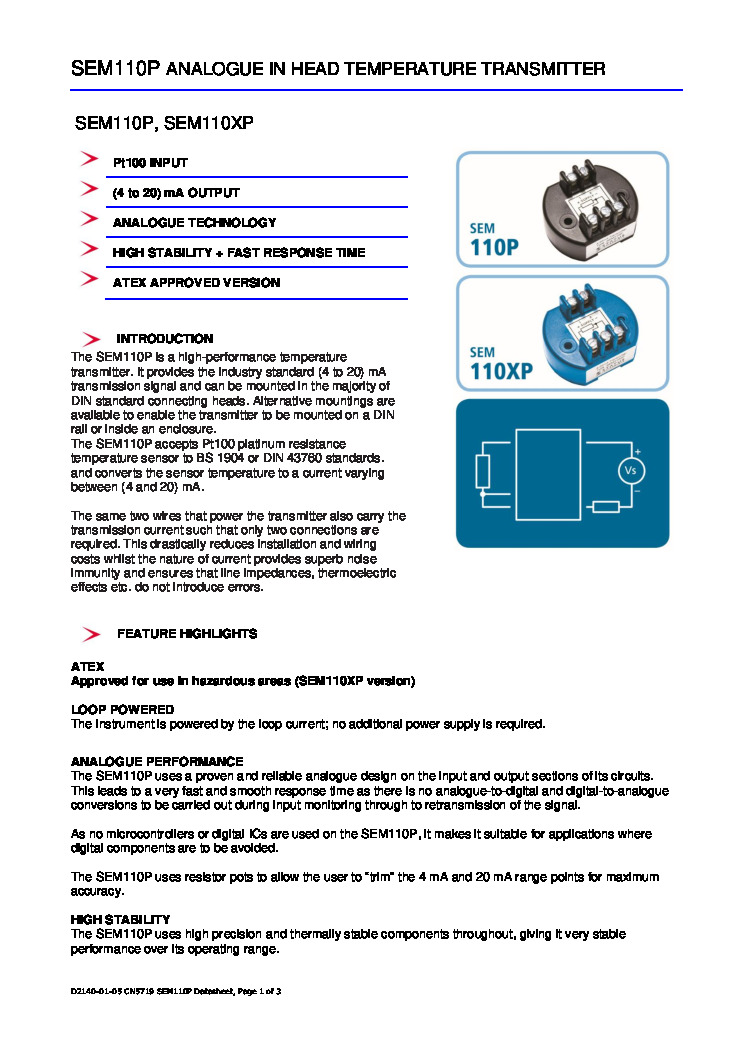

    The SEM110 is a high performance temperature transmitter. It provides the industry standard (4 to 20) mA transmission signal and yet is small enough to simply replace a connecting block in the majority of DIN standard connecting heads. Alternative mountings are available to enable the transmitter to be mounted on a DIN rail or inside an enclosure. The SEM110P accepts PT100 platinum resistance temperature sensor to BS 1904 or DIN 43760 standards or thermocouple sensor K, T, J, R or S and converts the sensor temperature to a current varying between 4 and 20 mA. Versions are also available for slide wire (W), variable resistor (Z) or differential temperature (D).
